## CVD 5 – Transitions

We get lots of cornering experience in everyday driving – 90 degree turns at street corners, long sweepers at our freeway onramps and offramps. But transitions, most often in the form of a slalom, are a really rare animal, never encountered on public streets. And even though the speeds are higher and the governing physics identical, the esses at a track like VIR, Infineon, or the Streets of Willow don’t deliver the frantic tension of a tough 8-cone slalom at the Solo national championships.

From our earlier analysis we found we spend about the same amount of time in transitions as we do in regular cornering (40% each). In a lot of regions, or on a lot of courses, the proportion of time transitioning might be even higher. Runway shaped lots tend to produce very transitional courses, and there’s been a trend over the last several years away from corners, and towards more transitions (often disguised as “Chicago boxes”, “walloms”, etc.).

Given the rarity of transitions, it is also a place that tends to really separate the great drivers from the good and average. I’d wager more championships have been won – and lost – in slaloms, than in any other type of element. We won’t be covering slalom driving techniques here, but we should keep in mind that they are of critical importance, and ensure we are at our best through them, though of course we’re always bound by the physics of our situation.

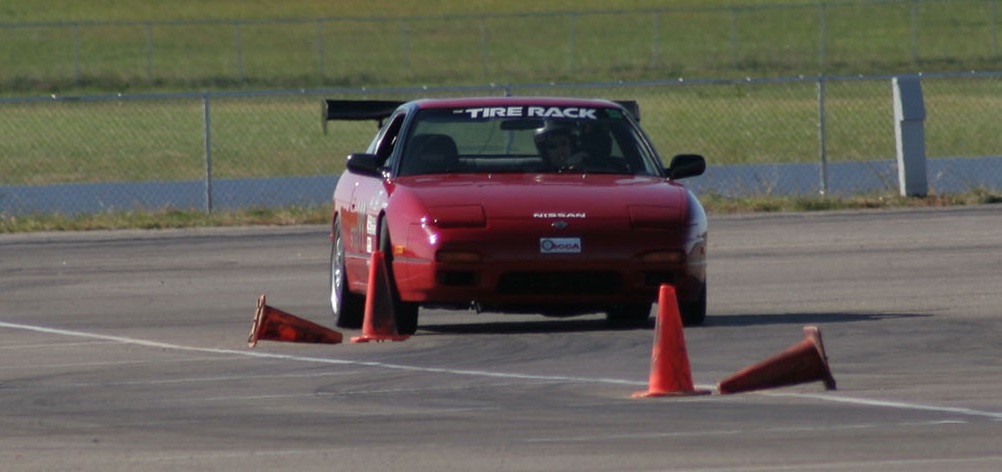

In a theoretical “perfect” slalom, the cones are evenly spaced in a straight line, forever. We ignore the first and last 2-3 cones. It’s in the middle of this “forever” slalom where we can isolate the maximum number of variables and focus on transitioning theory. In this space, the car is traveling at a constant speed, in a sinusoidal pattern, instantly transitioning from one lateral cornering limit to the other. The perfect driver executing this maneuver just touches the base of each cone, thus moving the car laterally only as much as was needed to not hit each cone.

There are a lot of factors that come into play in evaluating how a car will slalom…and fortunately for us all, the work has already been done. As happens with a lot of neat scientific and mathematical endeavors, many of the variables end up canceling out, leaving us with a simple truth. Since I don’t wish to plagiarize upon the work of those who’ve already done so, here is what was originally a post to an autocrossing email list, done in the days before the rise of the modern message board.

From:* Byron Short

Date:* Wed*Dec*3,*2003* 10:31 am

Subject:* Re: [evolution-disc.] Re: Minimizing Distance vs. a Proper LineYeah, I’m still lurking…

The slalom formula is:

(pi / 8 ) * sqrt( d / g)

where d is the lateral displacement of the vehicle in feet, and g is the

peak g capability of the vehicle in g’s. When we say “lateral

displacement” we mean “how far do you have to move the vehicle from peak

left to peak right to get around the cones. This usually means the

width of the vehicle plus the width of the cone when the cones are in a

straight line, but you can compute it with some offset either positive

or negative if the course design dictates that.When you solve for the formula you get a number that is typically around

1, which corresponds to the seconds to go from one cone to the next in a

forever, never-ending, consistently spaced slalom. In the real world we

can and do shortcut the first and last cones of slaloms, but the middle

cones are subject to this formula.Also, you’ll note that there’s no variable for the distance between

cones because that doesn’t matter. Unlike a radius turn, the speed in

this cases increases in direct proportion to the distance between the

cones so unless you get to ridiculously small gates where hand speed,

power steering pump, weird ackerman angles, etc, become factors, the

distance between cones doesn’t matter. However, as Rick pointed out,

the distance you miss the cones by increases d and increases the time

considerably.For instance, let’s take an autocross car that pulls 1g and is 5.5 feet

wide, going past a cone that is 1 foot wide at the base. This meanst = (pi / 8 ) * sqrt( 6.5 / 1 ) = 1.001 sec

If we miss each cone by a foot on each side, then we have increased d

not by 1foot, but by 2 feet (one foot on each side of each cone). So nowt=(pi / 8 ) * sqrt( 8.5/1 ) = 1.145 sec

For a total difference of 0.144 per cone!

This formula was derived with invaluable help from (yep, you guessed it)

Jay Mitchell back around 1994 or so. I’ve tested it empirically for

years and still find that it holds water, no matter the size of the

vehicle (even dually pickups and Suburbans, down to shifter karts and

kid-karts), no matter the g-loads, no matter the distances (with the

above caveat not withstanding). This simple formula is a lot of fun and

very useful. In conjunction with a G-Cube you can use this formula to

compute how much you missed the cones by, for instance. And you can

certainly predict how fast a street car will slalom if you know it’s

width and have a good estimate of it’s lateral g limits.Okay, I’m getting back to real work now. Lurk mode ON!

–Byron

There’s a couple key variables here – d (the lateral distance we have to move the car, roughly equal to its width), and g (the lateral grip the car produces).

Let’s take a real world example – two cars with a 1.2g lateral limit, but one (Car A) is 66″ wide, the other (Car B) is 72.5″ wide. The cones are in a typical straight line, with a 12″ base. What will the difference in time be around each cone?

Car A’s time: (pi/8 ) * sqrt((5.5′ [car width]+.5′ [half of cone width]) /1.2)

=0.39269908169872415480783042290994 (we’ll round this to .3927) * sqrt(5)

=.3927 * 2.236 = .878 seconds

Car B’s time: (pi/8 ) * sqrt((6.04′ [car width]+.5′ [half of cone width]) /1.2)

=.3927 * sqrt(5.45)

=.3927 * 2.55 = .916 seconds

For a difference of .916-.878 = .038 seconds per cone

After having passed 5 cones, the narrower car has a 2 tenths of a second advantage. Plenty of jackets have been won by less than this. Plenty of courses out there where between the boxes and jogs and offsets in addition to regular slaloms, you’ve got to transition 20-30 times before the run is over. It adds up.

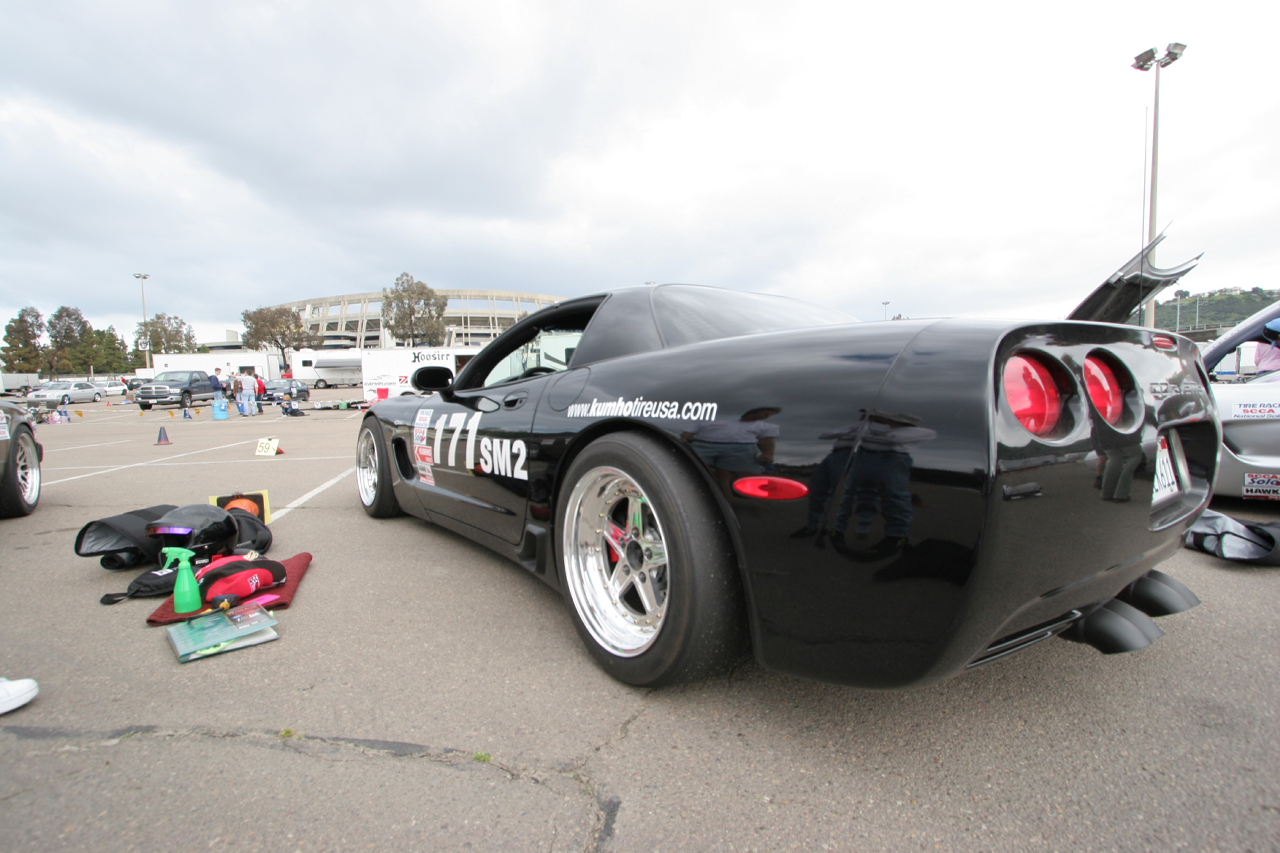

Wide cars look cool, but you pay the price at every transition!

One thing that helps mitigate this situation for the big car is the relationship between the car’s width, and its lateral grip limit. In our above example, the narrower and wider cars share the same lateral grip limit. But what if you could take a car, and adjust its width? Widening a car by about 10% (66″->72.5″) will reduce weight transfer from inside to outside, by 10%. That means a reduction of up to 5% less weight on the outside tires, putting them in a better part of the tire’s load sensitivity curve. But how much better, and how much more grip will the car make?

It all depends on where the tires were before the width change. If the tires were already really well off, it may not mean much – but if they’re badly overloaded (as the outside tires of production cars tend to be at peak cornering), it may help quite a bit. The 5% less weight won’t mean a 5% increase in grip, but it could mean 1-2%, maybe 3% if we’re lucky…moving peak lateral grip from 1.2, to 1.22 or 1.23g. Maybe more, maybe less.

Re-running the slalom time comparison – 66″ wide car at 1.2g, 72.5″ wide car at 1.23g:

Narrow car still .878 seconds. Wide car:

(pi/8 ) * sqrt((6.04′ [car width]+.5′ [half of cone width]) /1.23)

.3927 * sqrt ( 5.317) = .906 seconds

A savings of one hundredth per cone, about 25% of the narrower car’s advantage. Still losing 3 hundredths per cone, but at least it’s not as bad as it first seemed.

Narrower cars revel in slaloms!

Also remember we still have to drive the car. At 40-50mph, the cones go by awfully quick – passing 3″ closer to them than your competitor, can cut this disadvantage in half.

If you’ve got the wider car, you better hope it’s giving you an advantage in lateral grip, to mitigate the time you’re losing due to width, and to give an edge in the skidpad sections. Having a wide car is manageable on a good Nationals-quality course, but can be about the most aggravating thing imaginable on a poorly executed local course full of narrow transitions.
